Polish UPC APC Pigtail Fiber Optic Cable High Temperature Stability

Brand Name : MingTong

Certification : ISO

Place of Origin : Dongguan CHINA

Price : 5-200RNB/P

Payment Terms : L/C,T/T

Delivery Time : It depends on the actual situation

MOQ : 200

Packaging Details : cardboard box

Supply Ability : 2000 copies/Day

Polish : UPC,APC

Fiber Type : SM/MM

Connector : SC,FC,LC,ST,MU,DIN,MTRJ,E2000,MPO

Cord Type : Simplex ,Duplex

Cable Jacket : PVC,LSZH,OFNR,OFNP

Highlight : pigtail fiber optic cable, fiber optic components

Contact Now

Polish UPC APC Pigtail Fiber Optic Cable High Temperature Stability

Description

An optical fiber pigtail is a length of fiber with a connector at one end, used for connecting the beam path. It can have various types of connectors and three types of polished fiber end-faces (PC, UPC, and APC). Our advanced techniques and equipment ensure high-quality mass production


This product has the following features:

Low insertion loss

High return loss

Good repeatability

Good exchangeability

High temperature stability


Applications include optical fiber communication systems


a.Optic-fiber data communications are involved in various applications.

b. Various applications can utilize optic-fiber data communications.

c. Different scenarios can benefit from optic-fiber access networks.

d. Multiple applications exist for LAN optic-fiber sensors.


Parameters


Mode Single mode Multi-mode
Polish UPC APC PC
Insertion Loss ≤0.2dB ≤0.3dB ≤0.2dB
Return Loss ≥55dB ≥65dB ≥35dB
Interchangeability ≤0.2dB
Salt Spray ≤0.1dB
Repeatability ≤0.1dB (1000 times)
Vibration ≤0.2dB (550Hz 1.5mm)
Temperature ≤0.2dB (-40+85 sustain 100 hours)
Humidity ≤0.2dB (+25+65 93 R.H.100 hours)
Apex Offset 0μm ~ 50μm
Radius of Curvature 7mm ~ 25mm
Standards-Compliant ROHS,IEC and GR-326


Fiber type Single mode:9/125-G652D
9/125-G657
Multi-mode: 50/125-OM2
62.5/125-OM1
50/125-OM3
Fiber Corning,China Fiber,other
Connector SC,FC,LC,ST,MU,DIN,MTRJ,E2000,MPO,SMA,D4 and others
Polishing PC,UPC,APC,MTRJ Male connector,MTRJ female connector
Cord type Simplex ,Duplex
Cable diameter 0.9mm ,2.0mm,1.8mm 3.0mm
Cable jacket PVC,LSZH,OFNR,OFNP
length(M) 0.5m,1m,3M,5m,10m,20m,200m or other

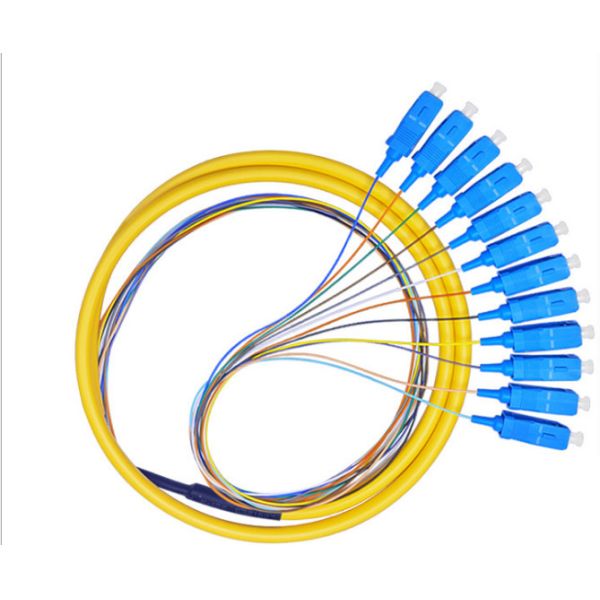

Appearance

Polish UPC APC Pigtail Fiber Optic Cable High Temperature Stability
Polish UPC APC Pigtail Fiber Optic Cable High Temperature Stability
